Gear Tooth Pitch Gauge – Model GTPG
Brand Name : Kristeel
HSN Code : 90173010
Dispacth time (Days) : Ex Stock or 2 – 3 days after your confirmed order and Payment

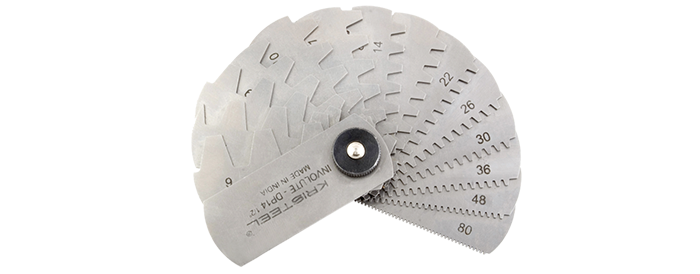

The images represent actual product though color of the image and product may slightly differ. HSN codes subject to change.This gauge is made of hardened & tempered stainless steel material 0.5 mm thickness. This is a very handy tool used to measure the Gear Diametrical Pitch and metric module pitch for 14.5o & 20o pressure angle. This gauge is duly fine edge profiled, Numbered pitch sizes are mentioned on each blade. It is very useful gauge for all gear manufacturers for inspection purpose. It is packed in a plastic box with gear data sheet (DP, CP, Tooth Thickness Data) provided for instant reference. Available in : 1)Diametral Pitch, 2)Metric Module Pitch
Model Description Range
GTPG 2722 Gear Tooth Pitch Gauge – (DP 14.5o) 6-80 DP
GTPG 2813 Gear Tooth Pitch Gauge – (DP 20o) 6-80 DP
GTPG 3115 Gear Tooth Pitch Gauge – (MMP 14.5o) 0.35 – 4.5mm
GTPG 2666 Gear Tooth Pitch Gauge – (MMP 20o) 0.35 – 4.5mm
GTPG 3121 Gear Tooth Pitch Gauge – (DP 14.5o) 2-5 DP
GTPG 3122 Gear Tooth Pitch Gauge – (DP 20o) 2-5 DP
GTPG 3123 Gear Tooth Pitch Gauge – (MMP 14.5o) 5-12mm
GTPG 3124 Gear Tooth Pitch Gauge – (MMP 20o) 5-12mm
