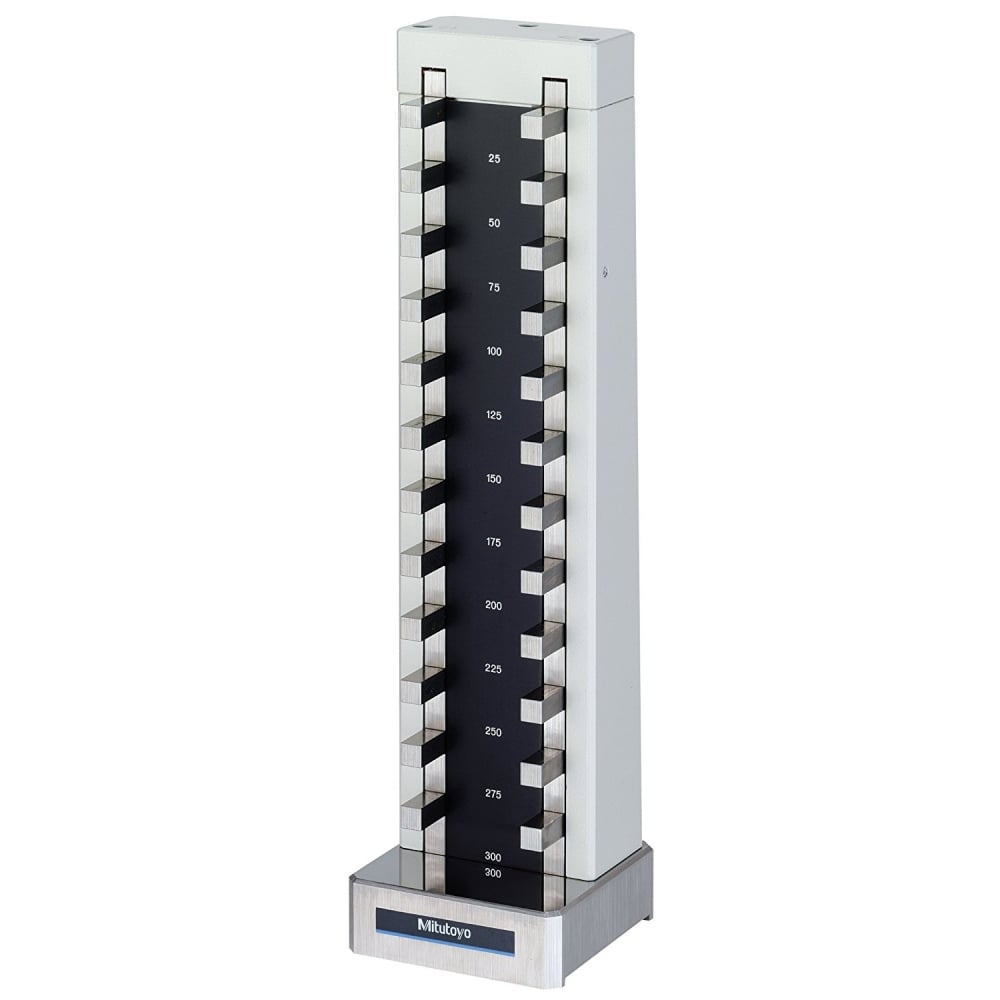

The instrument ‘MIKRONIX’ Depth Micrometer Checker is specially, designed for the Calibration of Depth Micrometer. Gauge blocks are built-in the rigid frame to provide measuring in 25mm or 1” steps in accordance with the travel range of micrometer head.

An anvil of 25mm or 1″ is supplied to provide a reference point for calibration at desired step within the measuring range of the Checker. The instrument is an ideal master gauge for calibration of depth micrometers that must be set zero before accurate measurements are taken.

Available Models

Code No. Material of blocks Measurement range Measuring & spacing blocks Anvil block
SDMC 150 STEEL 0 -150 mm 10 mm & 15 mm 25 mm (±0.5 µm)
SDMC 300 STEEL 0 -300 mm 10 mm & 15 mm 25 mm (±0.5 µm)
SDMC 6″ STEEL 0 – 6″ 0.4″ & 0.6″ 1″ (±0.00002″)
TDMC 150 CARBIDE 0 -150 mm 10 mm & 15 mm 25 mm (±0.5 µm)
TDMC 300 CARBIDE 0- 300 mm 10 mm & 15 mm 25 mm (±0.5 µm)
TDMC 6″ CARBIDE 0 – 6″ 0.4″ & 0. 6″ 1″ (±0.00002″)

Accuracy : ± (1 + L / 150 µm)
Specifications

Code No. Item
SDMC 150 (µm)
SDMC 300 (µm)
SDMC 6″ (µinch)
TDMC 150 (µm)
TDMC 300 (µm)
TDMC 6″ (µinch)
Overall Accuracy
± 2
± 3
± 120
± 2
± 3
± 120
Flatness of Block
0.3
0.3
12
0.2
0.2
8
Parallelism of individual Block
0.3
0.3
12
0.3
0.3
12
